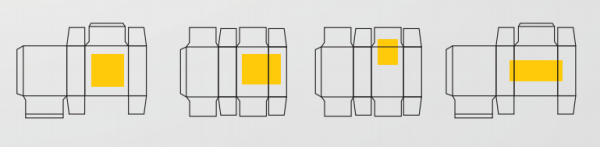

Window Patching Machine with corner cutting & creasing

1. Paper feedng section:Full servo paper feeding, according to different thickness, different specifications of the paper box can be adjusted to ensure that the paper boxenters the conveyor belt quickly and stably.
2.Paper correction track:Driven by the servo motor, the chain adopts Japanese brand, and the chain guide adopts imported polymer material, which is wear-resistant and quiet.
3.Glue section:The gluing part and the gluing part are respectively driven by servo motors, which can be adjusted without stopping the machine. The gluing part has an empty tension lifting function to prevent the glue from contacting the belt, and the gluing part has a compensation function to avoid glue displacement.
4.Fitting section:The hob and the suction drum are driven by servo motors respectively, and the position of the suctior hole of the drum is not stopped when the film is cut by the knife. The touch screen input adjustment fast speed, high precision, and the film on the drum has photoelectric detection paper.
5.Angle folding and creasing section:Pneumatic V-shaped angle mold is standard configuration, horizontal and vertical screw shaft adjustment is convenient, the pressure line is pneumatically adjusted, and the longitudinal screw shaft is adjusted.
6.Paper delivery section:A separate motor controls the operation of the delivery belt, and the stacking spacing can be adjusted as a whole or in sections.
7.Film unwinding section:A separate motor controls the operation of the delivery belt, and the stacking distance can be adjusted as a whole or in sections. The air expansion shaft is faster to install the film, and the follow-up film detection is installed at the back, and the machine will automatically stop when there is no film.
