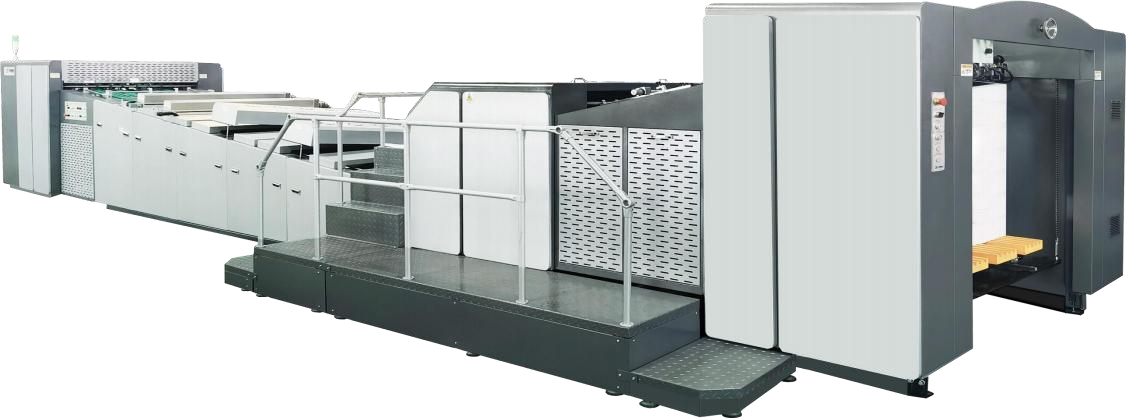

This machine is a water-based and oil dual purpose high-speed partial/comprehensive UV polishing equipment, suitable for partial or comprehensive polishing of rubber cloth or flexographic plates. The partial polishing and overprinting are precise and uniform without squeezing oil. Suitable for partial overprinting or comprehensive polishing of text and patterns in printed materials such as books,advertisements, color boxes, films, and high-end packaging, to improve the quality of printed materials and increase aesthetic appeal. Multiple safety protection designs ensure the safety and ease ofoperation of operators through user-friendly operating procedures. The high-speed local UV polishing machine developed by the company uses a hem style Teflon mesh to take away paper, capable of high-speed paper feeding at a speed of 7000-8000 prints per hour.
Technical parameter
|
Maxi paper size |
740*1060mm |
|
Mini paper size |
310*406mm |
|
Paper weight |
100-450gsm |
|
Biting depth |
4-5mm |
|
Working speed |
8000pcs/hour |
|
UV drying power |
2*15kw |
|
IR dring power |
24*1kw |
|
Total power |
IR:42kw UV:42kw |
|

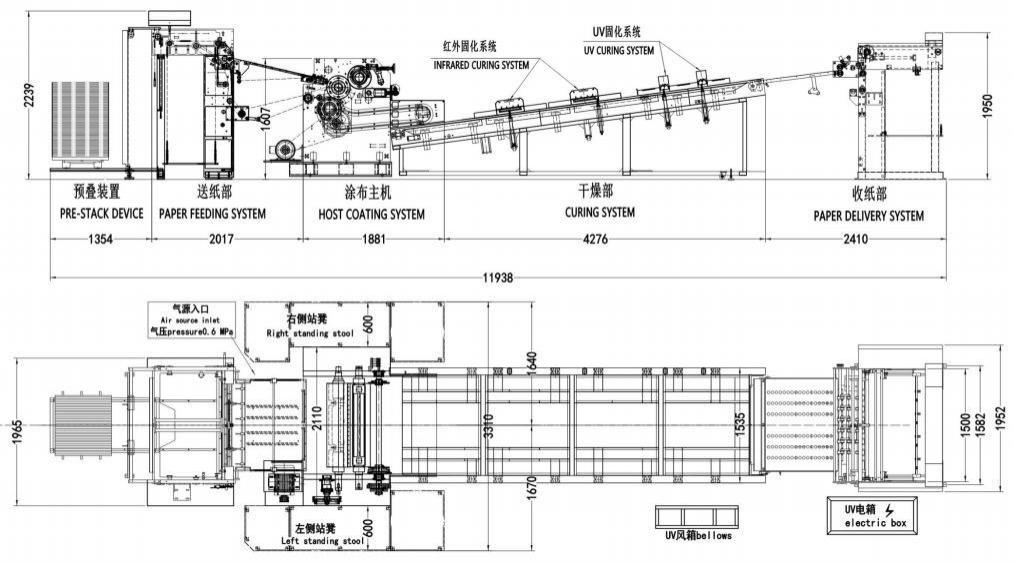

Overall dimension |
11.8*2.3*2.05m |
|
Machine weight |
8500kg |
|
Feeder height |
1300mm |
|
Delivery height |
1300mm |
