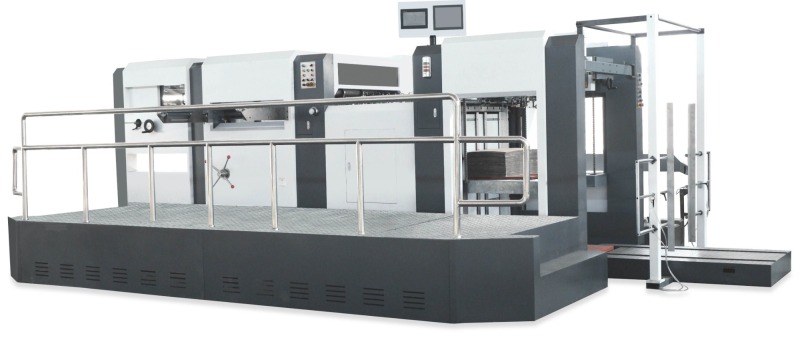

Auto Die Cutting and Creasing machine (manual-auto interchangeable feeder with stripping unit)
(1) This die cutting machine adopts independent motion control unit, the power transmission is done by servo motor, and running is controlled by motion control system. It can achieve accurate cooperation between feeding and main machine, and also self-movement model can be achieved.
(2) This die cutter has manual feeding and auto feeding models of motion state, when paper quality is poor, you can use manual model, easy switch. When use manual model, space can be released and suitable for operation.
(3) The die cutter feeding unit is equipped with independent feeding system. It can be connected with other manufacturer’s die-cutting machine. 4. The die cutter is equipped with stripping unit which can remove the waste on three edges and holes in the middle of the sheet after die cutting.
Technical Parameter
|
Model |
DISCOVERY-1200 |
DISCOVERY-1300 |
DISCOVERY-1500 |
|
Max. Paper Size( mm) |
1200*780 |
1300*960 |
1500*1100 |
|
Min. Paper Size( mm) |
350*350 |
400*410 |
500*440 |
|
Max. Die-cutting Size( mm) |
1180*760 |
1280*940 |
1480*1080 |
|
Max. Speed( sh/h) |
5000 |
4600 |
4500 |
|
Max. Working Pressure(T) |
300 |
300 |
300 |
|
Cardboard Paper Weight(gsm) |
250-800 |
250-800 |
250-800 |
|
Corrugated Board Thickness |
1-7mm |
1-7mm |
1-7mm |
|
Die-cutting Precision(mm) |
±0.5 |
±0.5 |
±0.5 |
|
Total Power(kw) |
27 |
27 |
27.5 |
|
Total Weight(kg) |
13500 |
15000 |
18000 |
|
Overall Dimension(m) |
7*4*2.25 |
7.9*4.1*2.25 |
80*4.0*2.5 |
