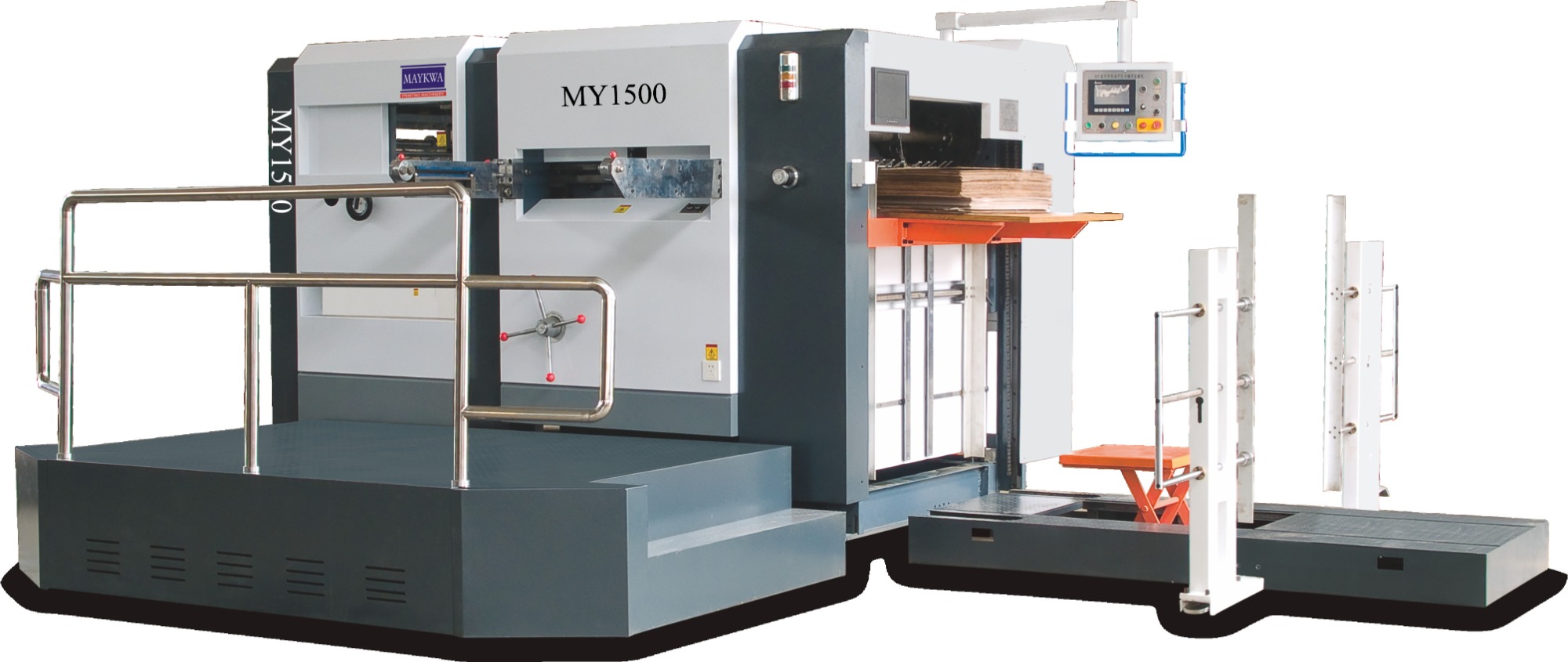

Semi-Auto Diecutting and Creasing Machine
Features
(1) Semi-automatic die cutting machine not only can process huge amount of paper, but also has frontal, back and side registration mechanism to ensure great precision of die cutting, thus ensuring high working efficiency.
(2) The interface can display various digital information of machine such as working speed. Also, it is easy to eliminate troubles according to the display of trouble shooting.
(3) The equipment has a lot of sensors and safe-ensuring devices to guarantee the safety of operation and environment, for instance, it adopts transducer to control the main motor for achieving stepless speed variation.
(4) It is convenient to stop the machine by hand and can realize die cutting without clipper margin.
Main Specification:
|
Model |
MY-1200 |
MY-1300 |
MY-1500 |
|
Maxi paper size |
1200x780mm |
1300x960mm |
1500x1100mm |
|
Mini paper size |
400x400mm |
400x400mm |
500x400mm |
|
Maxi cutting size |
1180x760mm |
1280x940mm |
1480x1080mm |
|
Maxi cutting pressure |
300T |
300T |
300T |
|
Maxi paper thickness |
1-7mm carton |
1-7mm carton |
1-7mm carton |
|
Maxi cutting speed |
4500pcs/h |
4500pcs/h |
4000pcs/h |
|
Total power |
15kw |
15kw |
21kw |
|
Machine weight |
11500kg |
12500kg |
13500kg |
|
Overall dimension |
5.1x4.0x2.2m |
5.7x4.1x2.2m |
6.1x4.6x2.2m |
