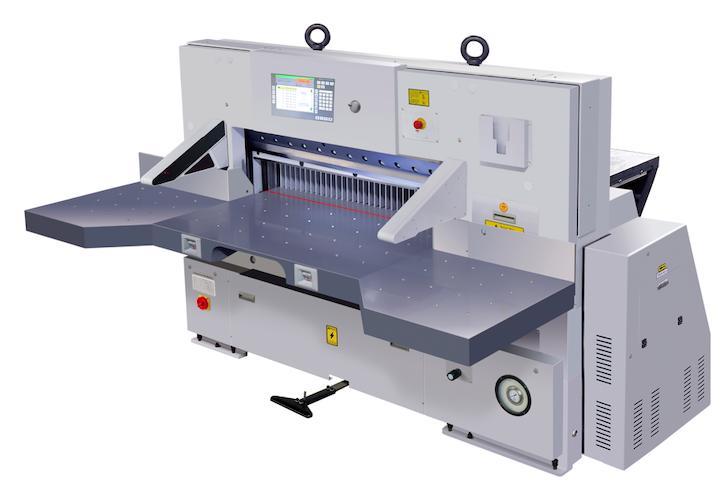

Dual Hydraulic Paper Cutting Machine
Main Technical Parameters
|
Model |
|
1150DH-15 |
|
|
Max cutting width |
cm/inch |
115/45.3 |
|
|
Max cutting length |
cm/inch |
116/45.7 |
|
|
Max cutting height |
cm/inch |
16.5/6.5 |
|
|
Width of machine |
With sidetable |
cm |
267 |
|
Without sidetable |
cm |
237 |
|
|
Main motor |
kw |
4 |
|
|
Weight |
kg |
3300 |
|
|
Voltage |
V |
365-395 |
|
|
Cutting speed |
Cycles/min |
45 |
|
|
Packing size |
Lx W×H (cm) |
260×154×203 |
|
|
Total width of machine |
cm |
267 |
|
|
Total length of machine |
cm |
261 |
|
|
Total height of machine |
cm |
163 |
|
|
The length of side table |
cm |
70 |
|
|
The width of groundsill of machine foot |
cm |
60 |
|
A. Product Description
1.Usage:Program Control Paper Cutting Machine is used to cut the printing paper of various kinds,paper products,plastic,thin film,leather,slice of non-ferrous metal,etc.
2.COMPUTER: it adopts 15 inch touch screen, 200 groups programming capacity, each of them can store 200 cuttings' datum of different locations; 0.01 mm position accurancy; six kinds of language; the working speed is 6-18m/min
3.Double Hydraulic Device: the hydraulic system adopts the Germany advanced technology. Equipped with combined hydraulic valve, double hydraulic controlling structure,it approves hydraulic device greatly.The hydraulic device pass CE certificate.
4.Double Guide Device: the paper pusher adopts double imported linear guide and roller ball screw.,which can prolong the machine use life, and can bear the high speed paper delivering.
5. Photo cell: it is equipped with a photo cell safety protection device.
6.Over load protection device; convenient knife changing device.
7.Worktable chrome treatment: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.
8.Air ball: air balls are installed in the worktable. The paper sending work will be easy and accurate.
9.Cutting controller:both of the user’s hands operate the machine. It can cut paper in one time.
10. Electronic knife lock:when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.
11.Safety notice & Glass covers: the machine has passed CE certificate. All the safety notice and direction mark is used to cause the safety attention of the user, and do protection and maintenance in time.(optional)
12.Main electric device are imported from Germany, French, Japan, etc.
13. Automatic lubrication system ：the machine body will add lubrication hydraulic by itself .
