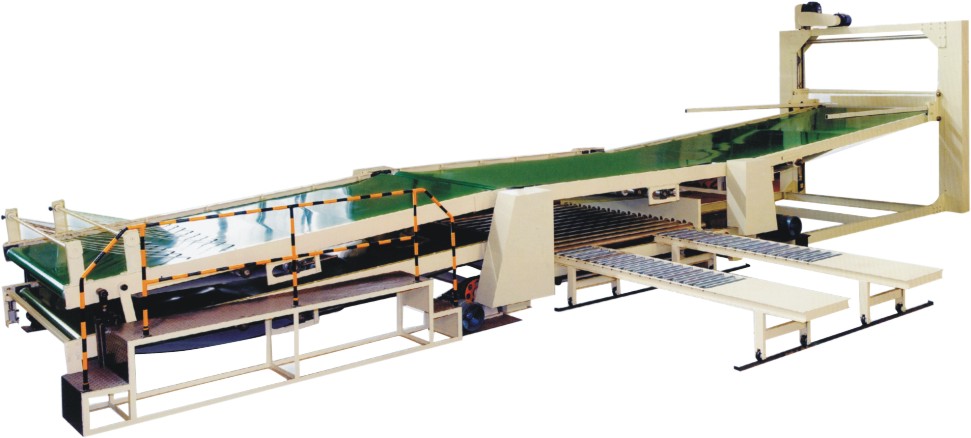

Automatic Giant Gantry Stacker:
1. Gantry mode stacker. Order change within 20 seconds and auot counting.
2. Connected with computerized production management system.
3. Non-gravity roller stacking platform. AC servo for staking liftup.
4. Auto movement from back baffle.
5. Touch screen operation.
6. Fully automatic working to increase efficiency and reduce labor cost.
Technical details:
|
Effective working width |
1400-2500mm |
|
Design speed |
200m/min |
|
Working speed |
12-180m/min |
|
Maxi stacking length |
3500mm |
|
Maxi stacking height |
1700mm |
|
Power |
440V 60HZ 3PH |
|
Machine dimension |
12*2*1.7m |
