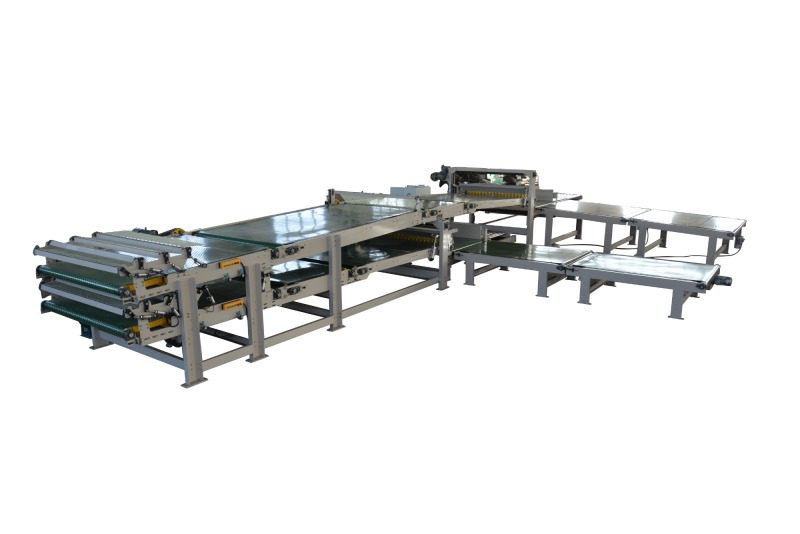

Fully Auto Little Dual Gantry Stacker

Auto Dual Gantry Stacker;

Technical specification:

Double-layer Automatic Little Gantry Stacking Machine

Main technical features

(1) Servo-driven platform lifts, three-stage variable frequency conveying, automatic counting, stacking and discharging, imported high-strength belt output, and a standard conveying frame on the paper side.

(2) Gantry type stacking. The order change time is 5 seconds, and it can be automatically counted, automatically crossed out, and automatically changed.

(3) Synchronized with the production management system, order management, centralized management, and automatic order change without slowing down.

(4) The waste of replacement of raw tubes is less than 700mm.

(5) Crawler-type stacking platform, AC servo control lifting, stable and neat stacking;

(6) When the stacking reaches the set number, the frequency conversion control automatically and smoothly discharges the paper horizontally;

(7) The positioning of the tailgate is controlled by AC servo control, which can be adjusted automatically, quickly and accurately when changing orders;

(8) The rear baffle can be automatically shifted, suitable for stacking small orders;

(9) The conveying side is equipped with an electric conveying frame and a double-station trolley.

(10) Independently sealed control cabinet, electrical equipment operates in a dust-free environment;

(11) Color touch screen display, convenient for on-site operation.

(12) Fully automatic operation control, improve efficiency, save manpower, and reduce the labor intensity of operators;
