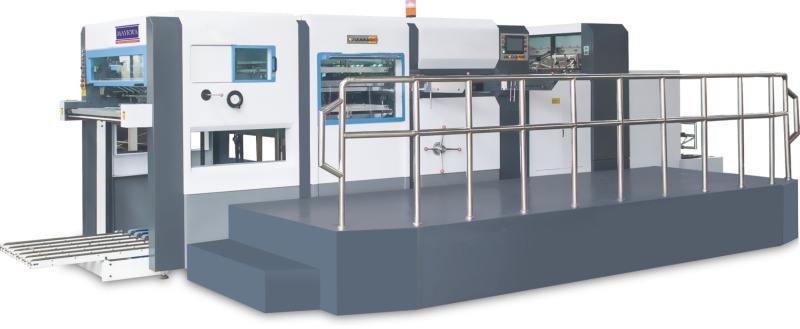

Automatic Die-Cutting & Creasing Machine (optional Stripping Unit) for corrugated board
Features;
(1) This die cutting stripping machine adopts the most advanced front-lead feeding structure, which can effectively prevent and reduce damages to the surface of printed sheet.
(2) This die cutting stripping machine is a perfect combination of the motion control system with servo motor, which ensures the operation more smoothly and reliable.
(3) The die cutting and stripping machine is equipped with stripping unit which can remove the waste on three edges and holes in the middle of the sheet after die-cutting(stripping unit is optional).
(4) Adopt imported electrical components, which are proved reliable and stable.
Technical parameters:
|
Model |
QMY-1200P |
QMY-1300P |
QMY-1500P |
|
Max. Paper Size(mm) |
1200X780 |
1300X960 |
1500X1100 |
|
Min. Paper Size(mm) |
350X350 |
400X400 |
500X400 |
|
Max. Die-cutting Size(mm) |
1180X760 |
1280X940 |
1480X1080 |
|
Max. Speed(sheets/h) |
5000 |
4600 |
4000 |
|
Max. Working Pressure(T) |
300 |
300 |
300 |
|
Max. Paper Thickness(mm) |
7 |
7 |
7 |
|
Die-cutting Precision(mm) |
±0.5 |
±0.5 |
±0.5 |
|
Total Power |
32.5kw |
32.5 |
36.5 |
|
Total Weight(kg) |
18000 |
19000 |
21000 |
|
Overall Dimension(m) |
8.6X4X2.3 |
9.1X4.25X2.35 |
9.6X4.7X2.4 |
