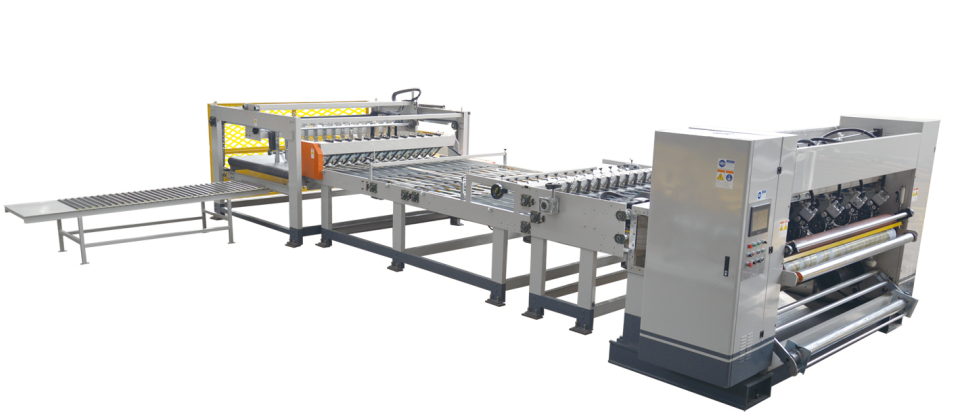

CNC Single Facer Slitting Helical Cutting with down basket stacker
Features:
(1) Could store 200 sets of orders, man-machine interface with information displayed screen, the orders can be consulted, modified, added, and cancel at any time.
(2) The motor drive adopts German KEB servo controller, and uses high performance servo motor synchronous drive.
(3) The transverse cutter is made of blade steel, the gear with hard face grinding can realize no-side clearance transmission with high precision and longer service life.
(4) The main machine is made of grey cast iron and has high rigidity and high shake resistance.
(5) The stacking part adopts the gantry platform to lift and guarantee high working efficiency. Divided into three sections with right angle cross output when reach a certain quantity, first section of gross roll design paper flat output without bending, second section of buffer length overlapping, third section of points aerodynamic separation, accelerate the output of board. Max stacking height is 1.3m, and suit for high efficiency production of color printing enterprises.
(6) Fast change-over time: 3-8s.
(7) Adopts thin tungsten steel alloy blade, sharp and can cut more than 8 million meters.
(8) The sharpening process is computer controlled, automatic sharpening or manual sharpening. Also can be cutting and sharpening at same time to improve production efficiency.
(9) Adopts imported synchronous drive device with more accurate, longer life and lower running noise.
(10) The upper and lower computer control system is composed of high quality imported industrial computer and high performance programmable controller.
Regular technical parameters:
|
Working width |
1200-2500mm |
|
Operation direction |
Right or left (depend on customer plant) |
|
Max mechanical speed: |
150m/min |
|
Mechanical configuration |
computer helical transverse cutting |
|
Computer helical transverse cutting |
300mm |
|
Max cutting length: |
9999mm |
|
Cutting precision |
±1mm (constant speed), |
|
5 sets of thin blade |
￠200 |
