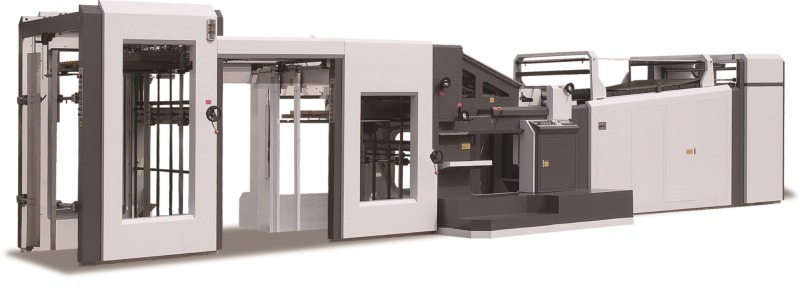

Fully Auto Cardboard to Cardboard Laminating Machine
Technical Features:
(1) CCL-1307/1310/1410 is specialized in the production of high precision auto cardboard laminating for thin paper, cardboard, gray cardboard, art paper etc to meet the demands of printed cardboard lamination; it is with the features of high precision, non-deformation and flatness.
(2) This cardboard laminator machine, its main parts come from well-known brand eight from aboard or domestic with long service life and good stability. Electrical components is from international famous brands to ensure the reliability. The machine is equipped with five sucking and four forwarding feeder, differential speed registration system, synchronization lamination and other innovative design. It is made according to the European CE standards. The machine can also do automatic monitoring, automatic detection, fault display and alarming from feeding, registration, and lamination to delivery.
Technical parameter:
|
Model |
CCL-1307 |
CCL-1310 |
CCL-1410 |
|
Max sheet size(L*W) |
1270*720mm |
1270*1000mm |
1410*1410mm |
|
Min sheet size |
500*380mm |
500*400mm |
500*400mm |
|
Thickness of face paper |
100-800gsm |
100-800gsm |
100-800gsm |
|
Thickness of bottom paper |
200-2000gsm |
200-2000gsm |
200-2000gsm |
|
Working speed |
150sheets/min |
120sheets/min |
120sheets/min |
|
Front lay laminating error |
±0.5mm |
±0.5mm |
±0.5mm |
|
Total weight |
9000kgs |
9000kgs |
11000kgs |
|
Total length |
10500mm |
10500mm |
12000mm |
|
Operation space |
3000*13500mm |
3000*13500mm |
3500*13500mm |
|
Total power |
16.5kw |
16.5kw |
24.5kw |
