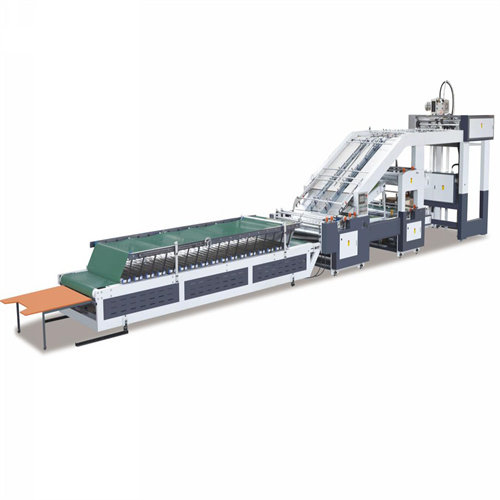

MK-FML series fully automatic multilayer flute laminating machine is consists of automatic face paper lifting section, face paper conveying section, conveying section, double bottom paper positioning section, cyclic gluing section and pressing section. It suits to laminate the printed paper to the corrugated board or cardboard which is thicker than 350gsm, with features of high precision and high speed. It is the ideal laminating machine for all kinds of packaging company domestic and overseas.
Key Points:
(1) Two in One or Three in One structure: It can laminate up to 5 layers paper board less than 10mm.
(2) High precision: with the help of chasing lay and Synchronous slot design, the machine can achieve a precision as ±1.5mm.
(3) Suit to both big and small size paper no need to do the readjustment.
|
Name |
Requirement |
Requirement |
Requirement |
||
|
Model |
MK-FML1300 |
MK-FML1450 |
MK-FML1600 |
||
|
Max. Paper size（W*L） |
1300*1300 mm |
1450*1450 mm |
1600*1450 mm |
||
|
Min. Paper size（W*L） |
500*450 mm |
||||
|
Face paper thickness |
150-500 g/m2（standard paper board） |
||||
|
Flatness requirements on face paper |
Curve height should less than 0.2 times of paper thickness |
||||
|
Requirements on film |
Film ends should be less than 2 times of paper thickness |
||||
|
Bottom paper |
A,B,C,E,F flute |
||||
|
Flatness requirements on bottom paper |
Within 15/1000 mm |
||||
|
Corrugated paper deflection |
Curve height should less than 0.2 times of paper thickness, deflection should be less than 2times of flute height |
||||
|
Requirements on the height of corrugated flute |
If there is difference between two flute, difference should be within 1/20 of the corrugated height |
||||
|
Diagonal requirement |
Less than 3/1000 mm |
||||
|
Size requirement on face paper and bottom paper |
Size of face paper should be 8 mm larger than that of the bottom paper |
||||
|
Laminate layers |
Face paper+corrugated paper=3 layers or Face paper+corrugated paper+corrugated paper=5 layers（total thickness less than 10 mm） |
||||
|
Precision |
±1.5mm（according to the paper quality） |
||||
|
Speed |
100 m/m（theoretical value ） |
90 m/m（theoretical value） |
|||
|
Production efficiency |
0-6000 sheets/h |
0-5000 sheets/h |
|||
|
Height of face paper pile |
1500 mm |
||||
|
Face paper table capacity |
1500 KG |
||||
|
Height of bottom paper pile |
400 mm |
||||
|
Total Power |
22KW |
||||
|
Voltage |
Three phase 380V |
||||
|
Efficient pressing length |
6000 mm |
||||
|
Conveying height |
250 mm |
||||
|
Adhesive medium |
Corn starch glue |
||||
|
Collecting table capacity |
300 KG |
||||
|
Dimension（L*W*H） |
16000*2200*2500 mm(Subject to machine) |
16000*2400*2500 mm(Subject to machine) |
16000*2600*2500 mm(Subject to machine) |
||
|
Machine Weight |
About 7.5 T(Subject to machine) |
About 7.8T(Subject to machine) |
About 8 T(Subject to machine) |
||
