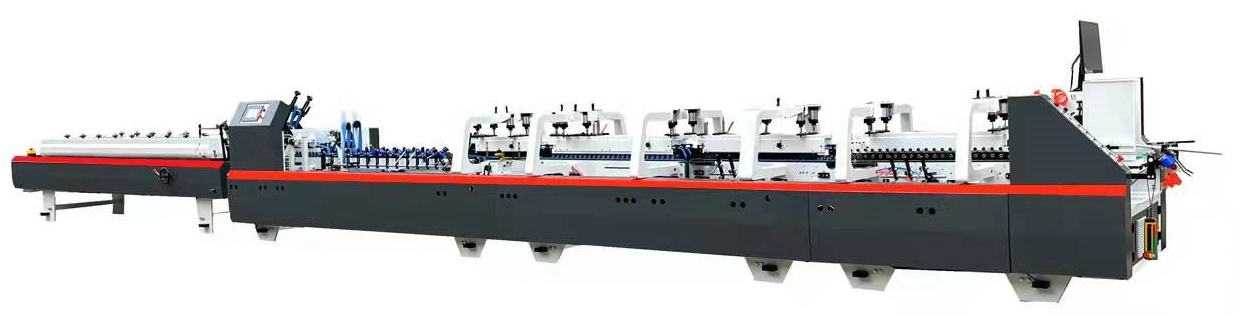

Automatic Box Folding Gluing Machine
(1) This machine is specially used for paperboard shaping and adhesive processing after cutting horizontally. Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box and bottom edging box.
(2) It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and glue for all kinds of bottom-locked cartons.Pre-fold section is applied to auto packaging, fold 1 and fold 3 of all cartons can reach 180° and 135° ,perfectly combing the requirements of auto packaging together.
Technical parameter:
|
Description |
Auto pre-fold crash lock bottom folder gluer |
|
Model |
FG-800G/1200G |
|
Paper |
Chipboard 200-800g E-fluteE /F-flute paper |
|
Maxi speed |
220m/min |
|
Feeding way |
Continusouly |
|
Folding form |
Fold 1 and fold 3 are 180°and 135.Fold 2 and fold 4 are 180°Bottom folded and glued |
|
Gluer |
Water-based |
|
Power |
7kw |
|
Weight |
2500/2700KG |
|
Machine size |
11*1.1（1.3）*1.4m |
