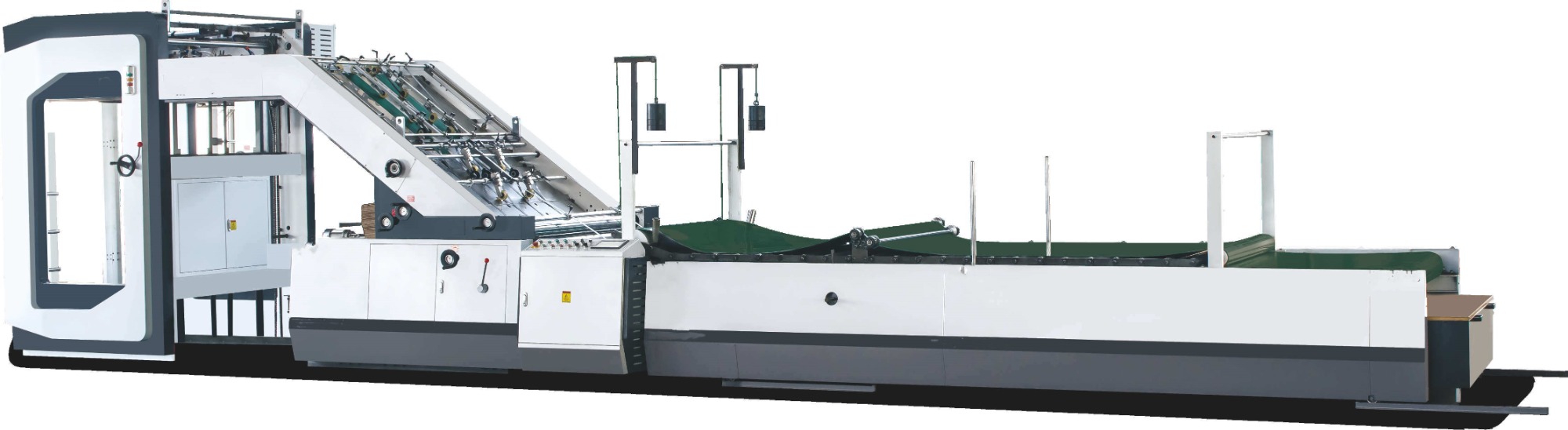

High speed Auto Cardboard to Flute Laminating Machine
Technical Features:
(1) The machine is perfectly combined motion control system with servo system. With patent technology movement structure of our company, the machine idle speed can achieve to 15000sheets per hour, and the effective speed can reach 12000 sheets per hour. In the case of face paper extruding condition, the operator can adjust the amount easily buy inputting data to man-machine interface.
(2) This flute laminator is equipped with side puller lay to control the side precision of laminated sheet.
(3) This flute laminator is suitable for various type of corrugated and cardboard lamination.
(4) The electrical components adopt imported parts with good stability.
(5) Using frequency speed regulation system to realize the stepless speed change.
(6) The auto glue system improves the degree of automation.
Technical parameter:
|
Model |
QTL-1300 |
QTL-1450 |
QTL-1650 |
|
Max sheet size |
1300*1300mm |
1450*1450mm |
1650*1600mm |
|
Min sheet |
500*440mm |
500*440mm |
500*440mm |
|
Thickness of facer paper |
120-450gsm |
120-450gsm |
120-450gsm |
|
Thickness of bottom paper |
ABCEF 3&5ply |
ABCEF 3&5ply |
ABCEF 3&5ply |
|
Speed of lamination |
153m/min |
153m/min |
153m/min |
|
Front lay laminating error |
±0.75mm |
±0.75mm |
±0.75mm |
|
Total weight |
8700kgs |
9500kgs |
13000kgs |
|
Total length |
10700mm |
12000mm |
13000mm |
|
Operation space |
3000*13500mm |
3100*13500mm |
3200*13500mm |
|
Total power |
18.2kw |
18.2kw |
20.2kw |
